| Motor |

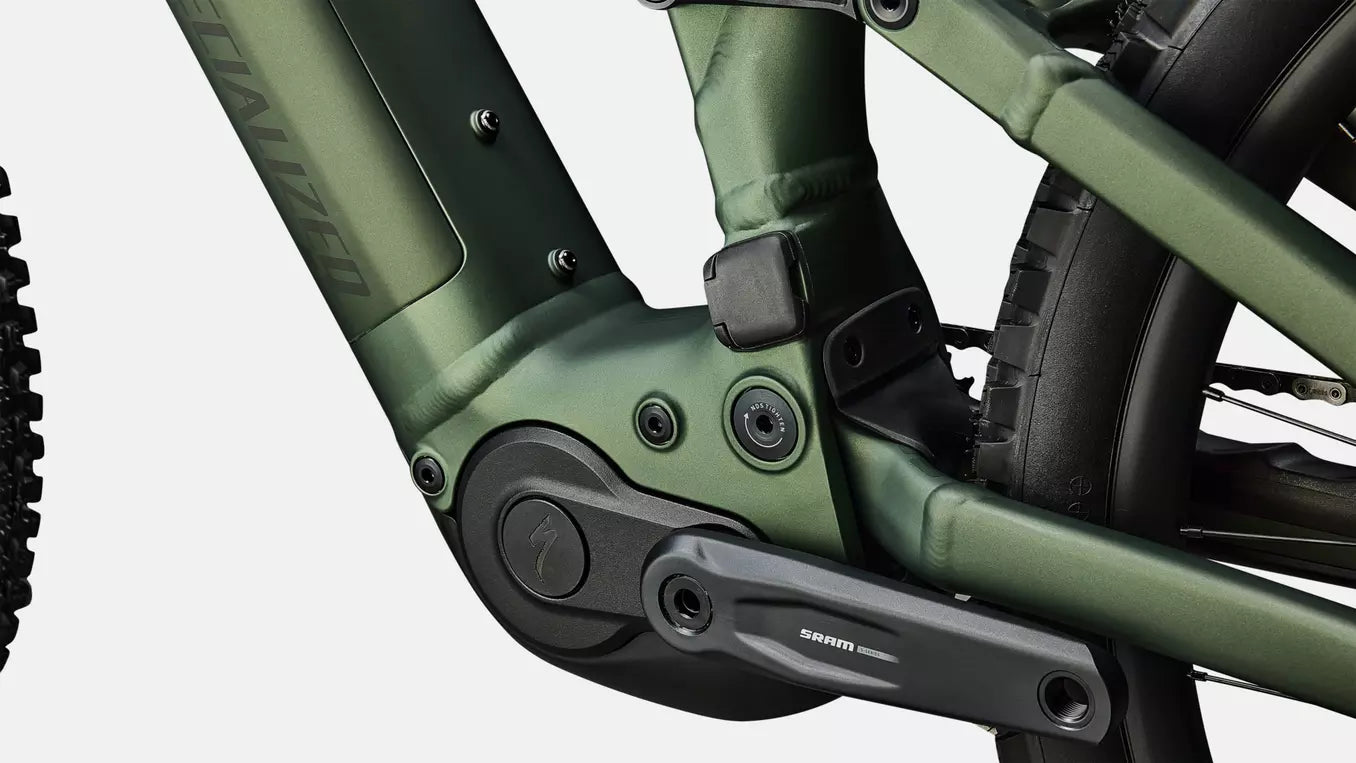

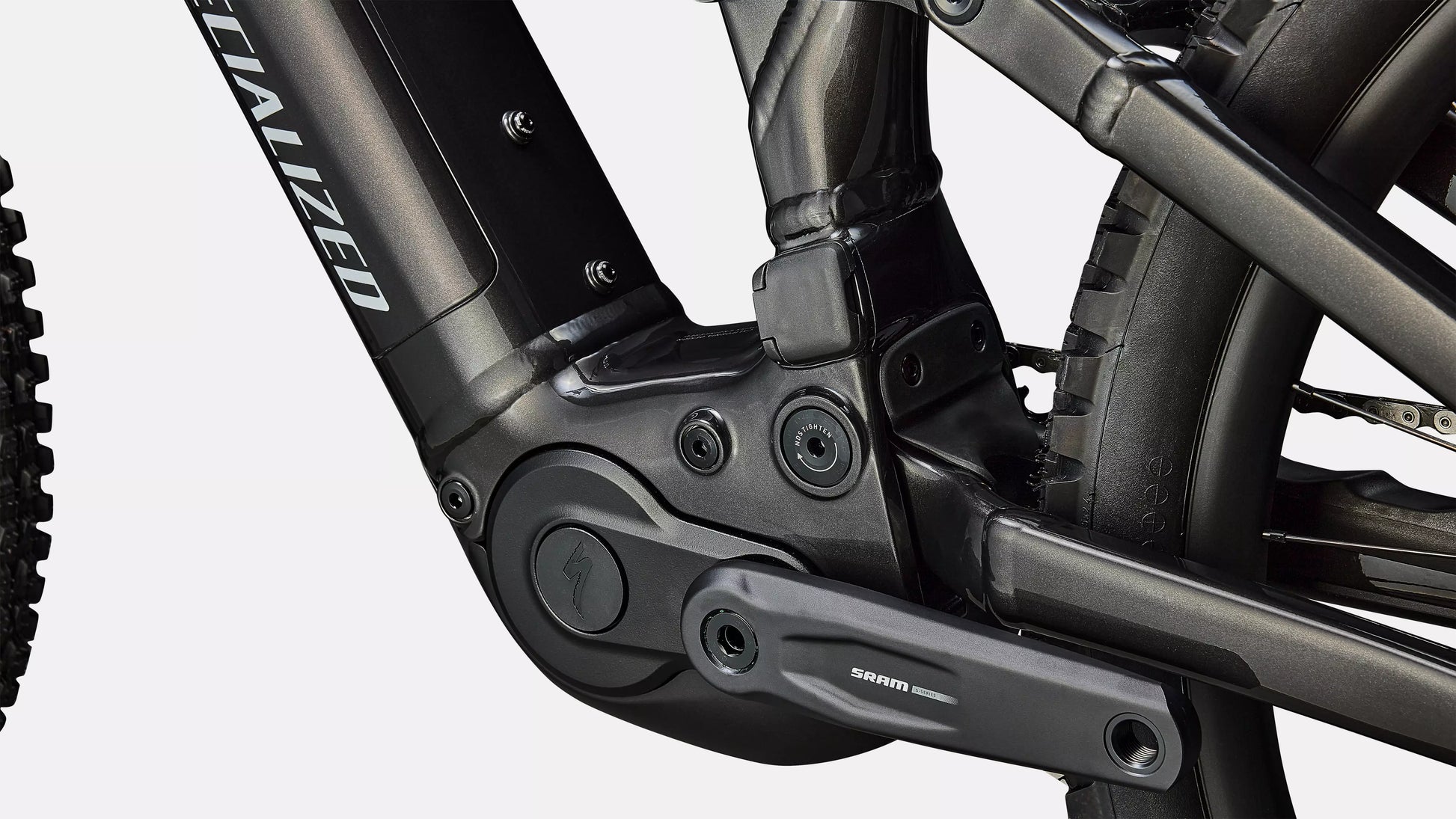

Specialized 3.1 Motor, 101Nm torque, 666 W power |
| Akku |
840Wh battery |
| Display / Lenkerfernbedienung |

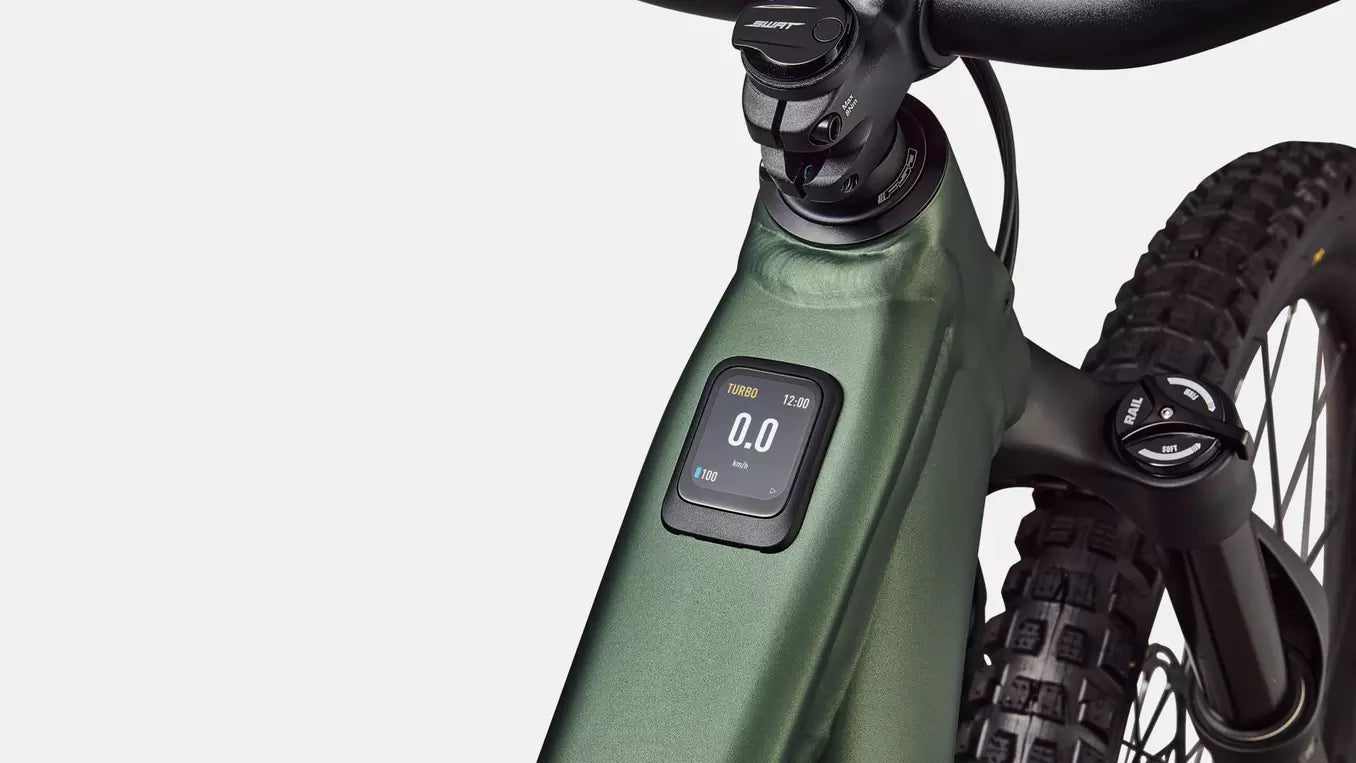

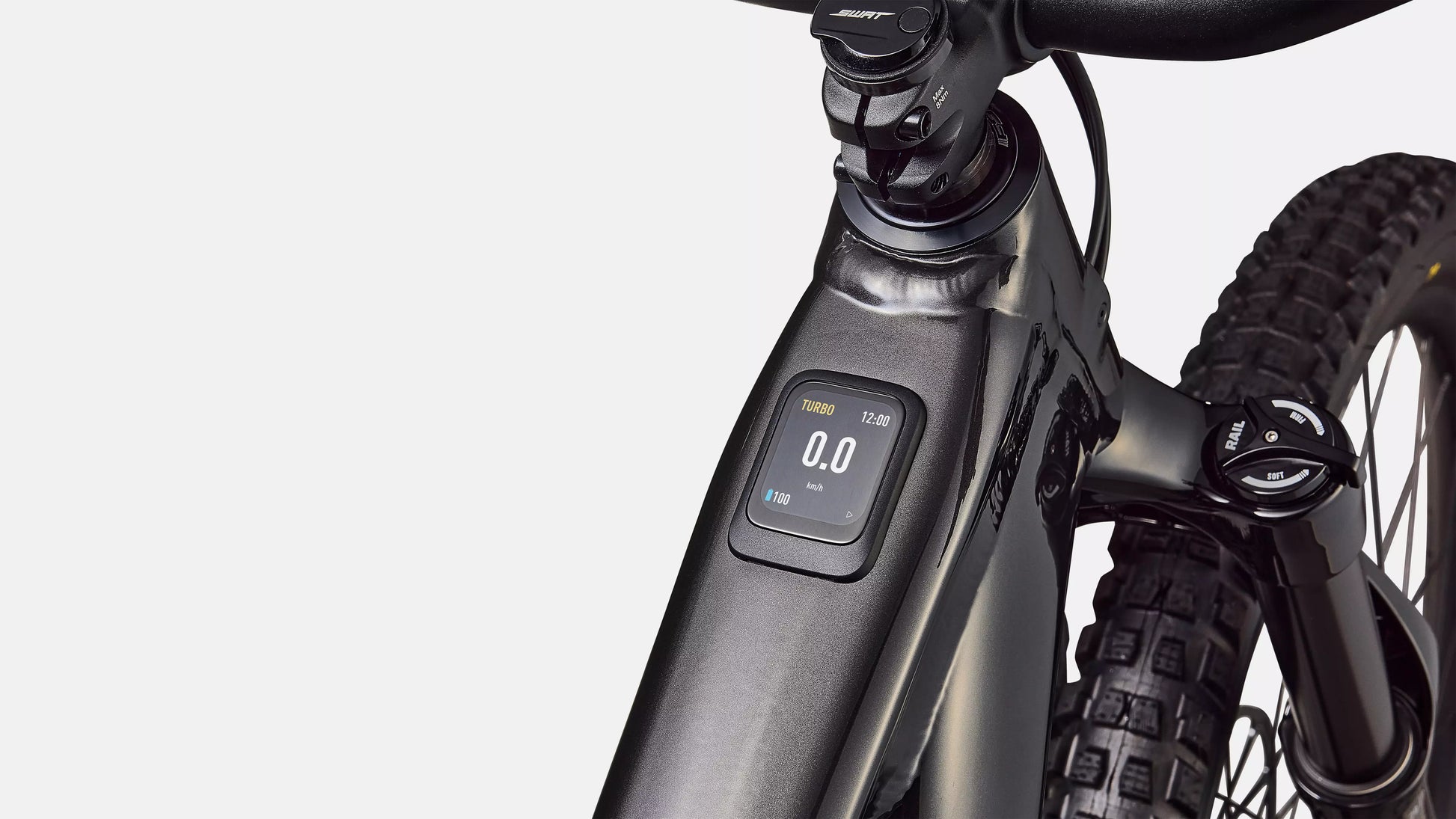

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App |
| Ladegerät |
Specialized 4amp charger |
| Rahmen |

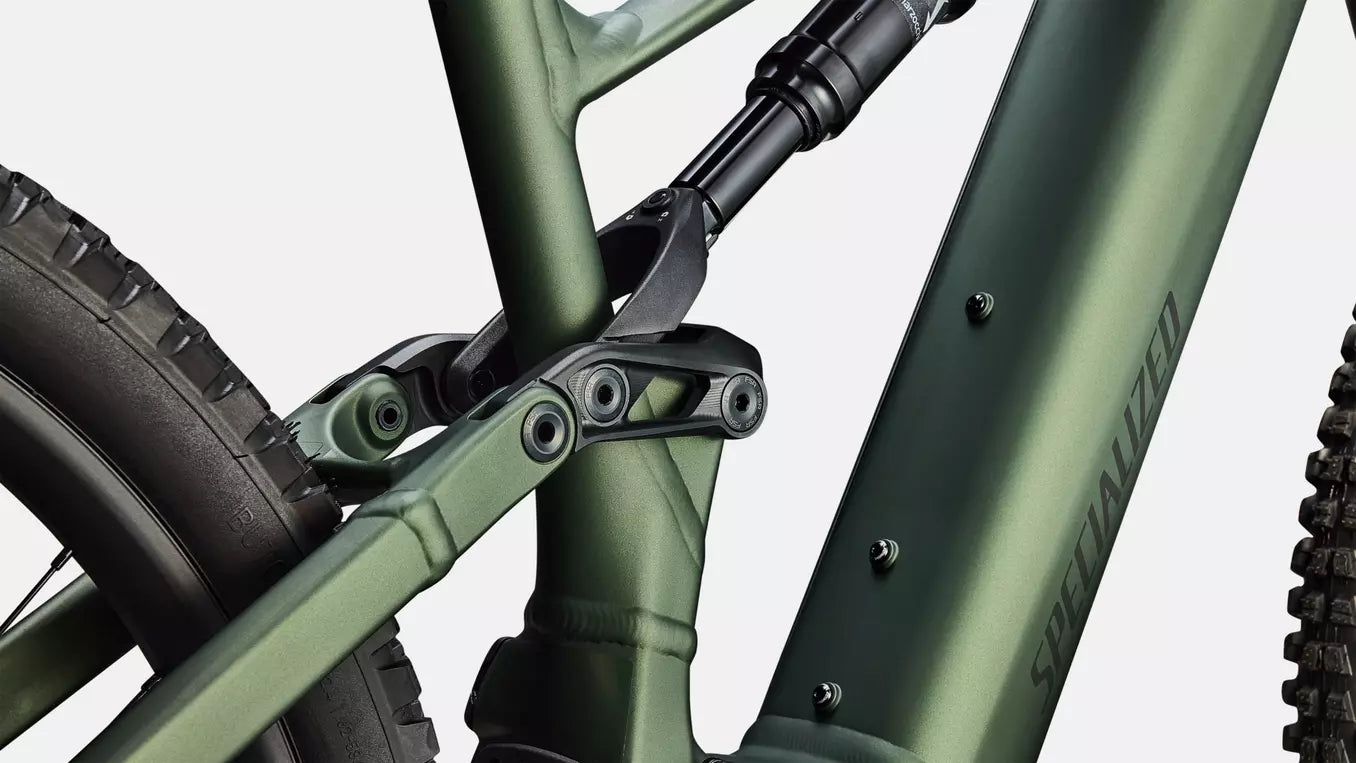

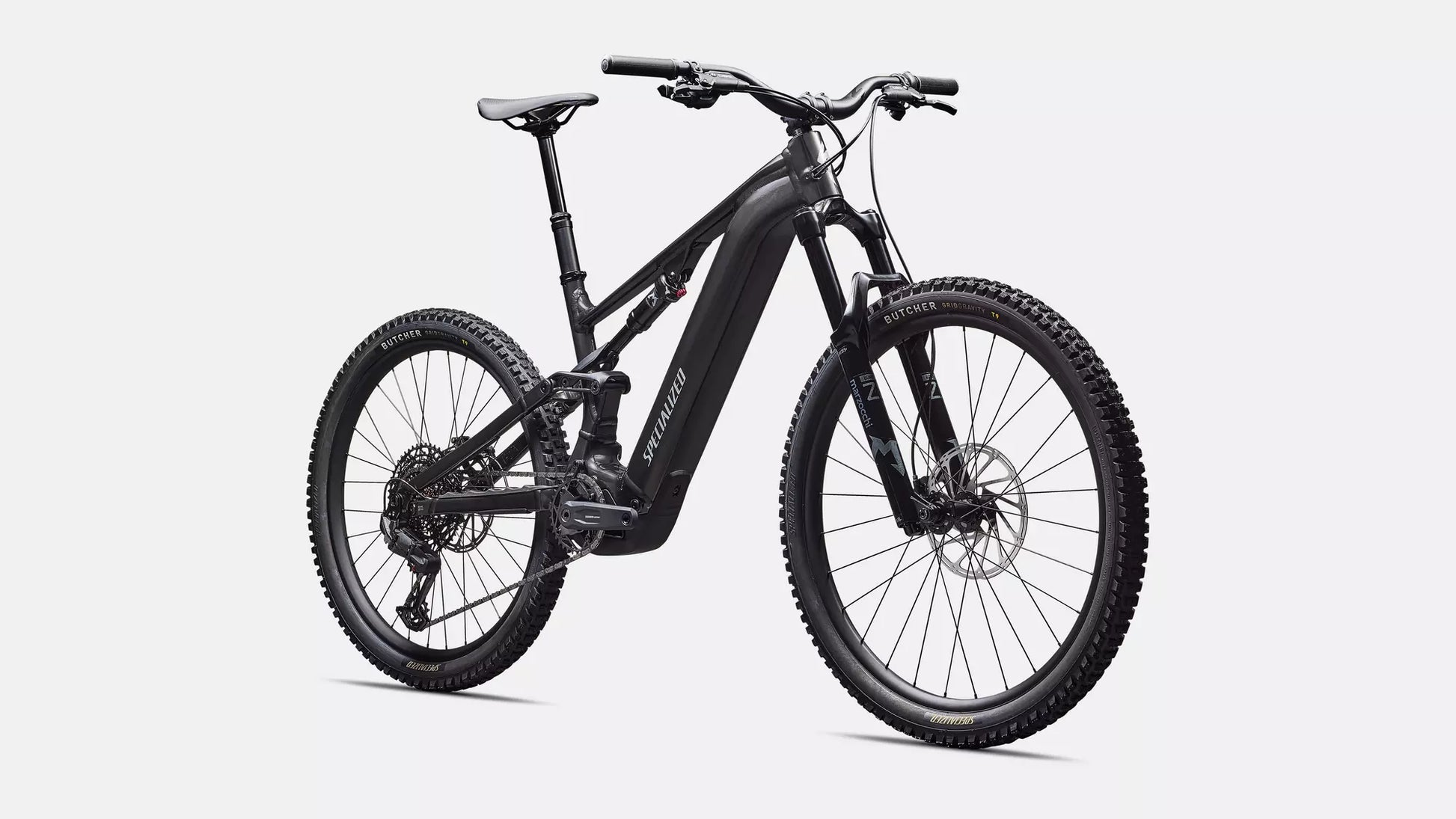

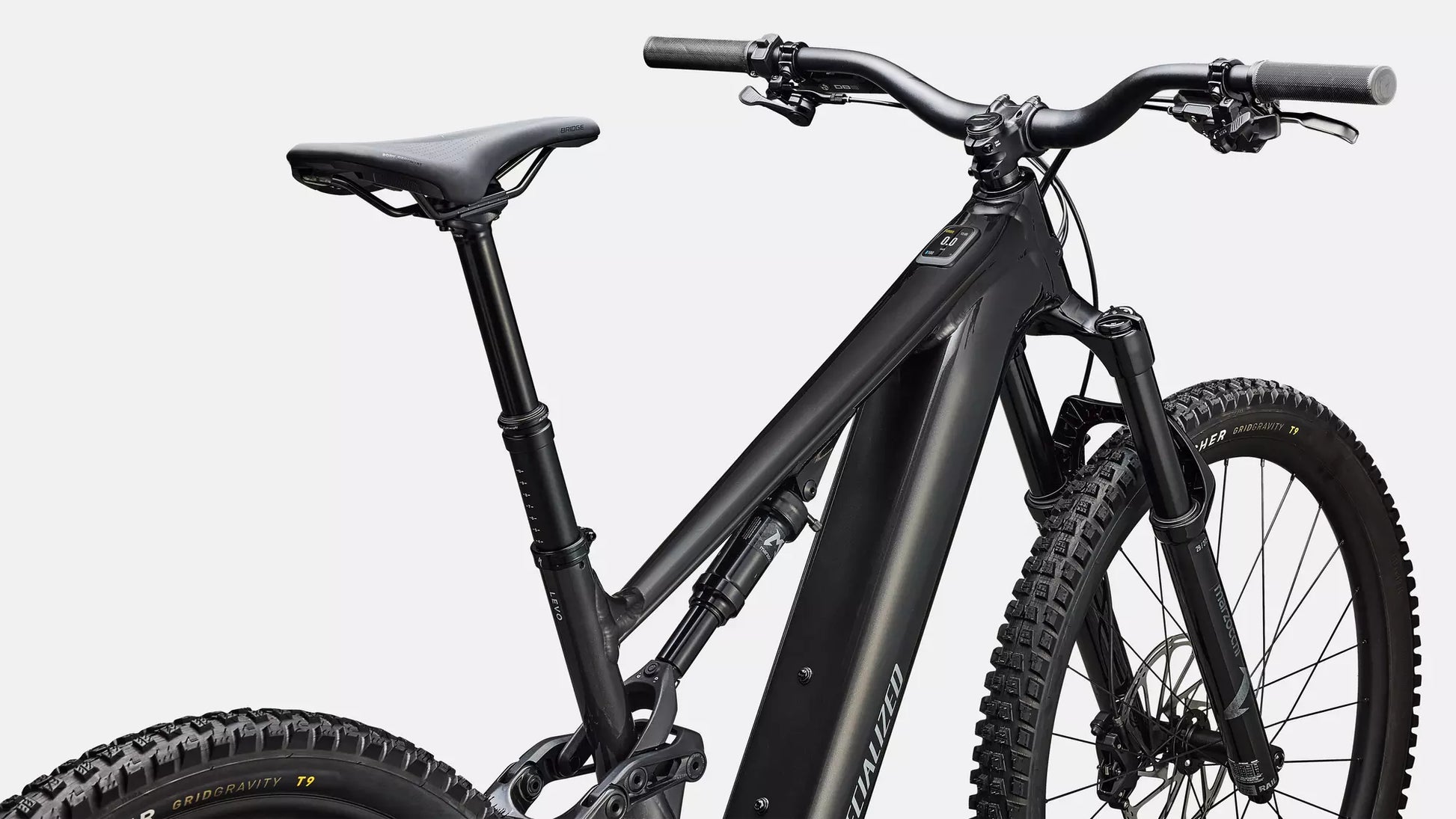

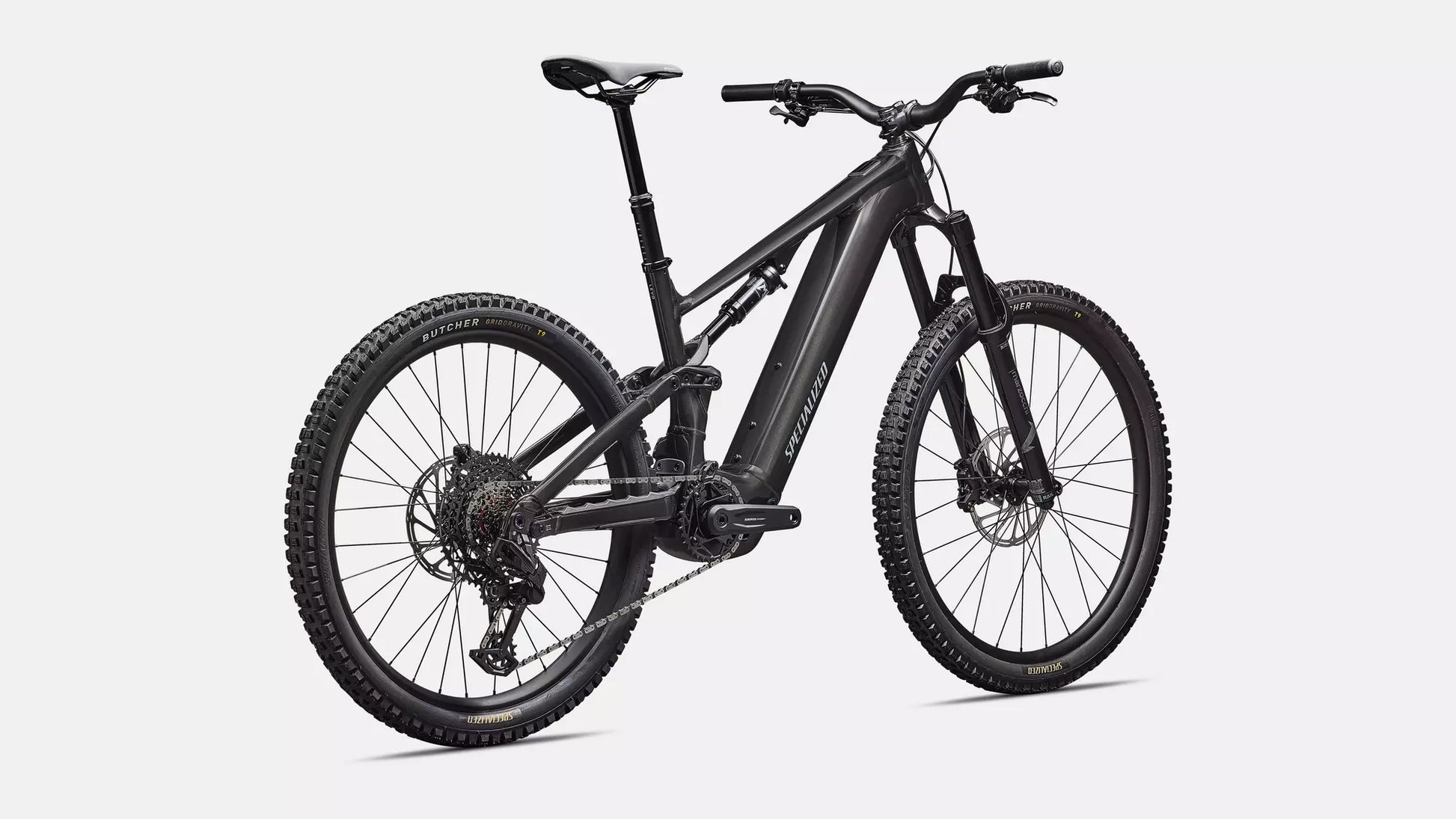

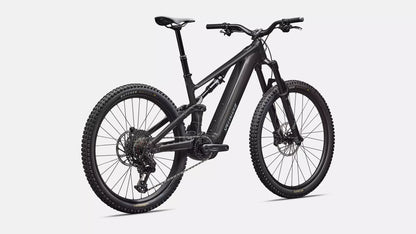

All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage, 148mm spacing, 29" front wheel / 27.5" rear wheel, fork travel up to 180mm |
| Sattelklemme |
Alloy, 38.6mm |
| Gabel |
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |
| Dämpfer |

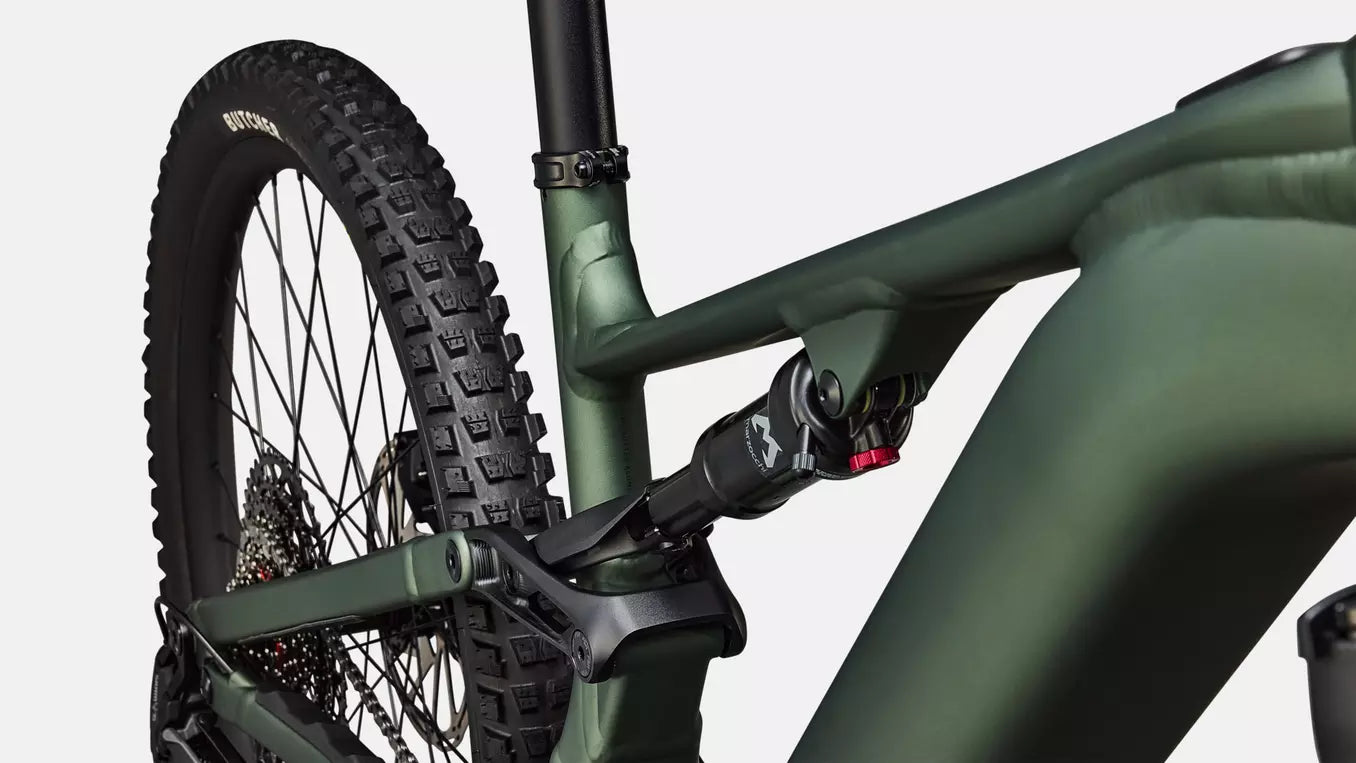

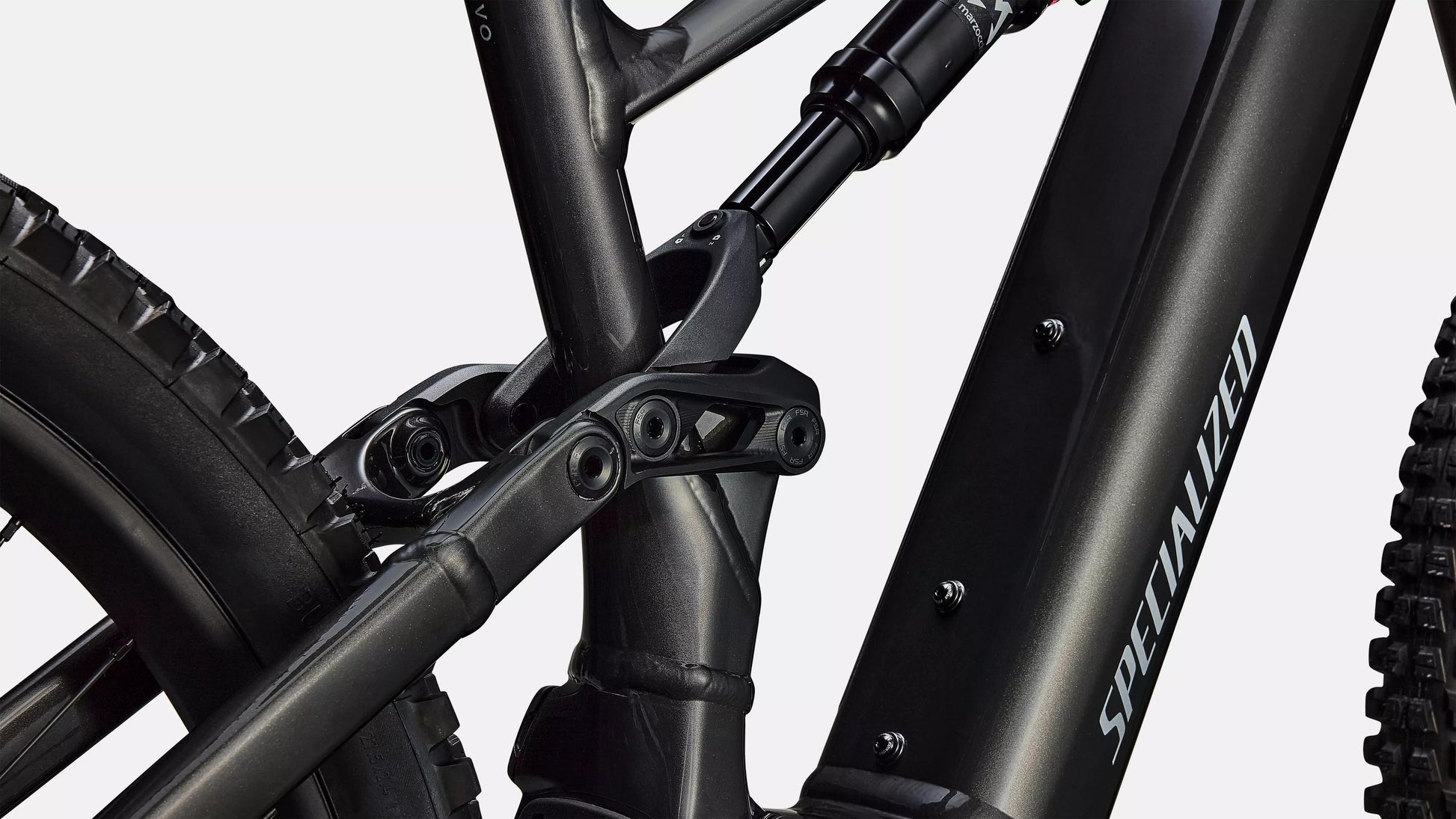

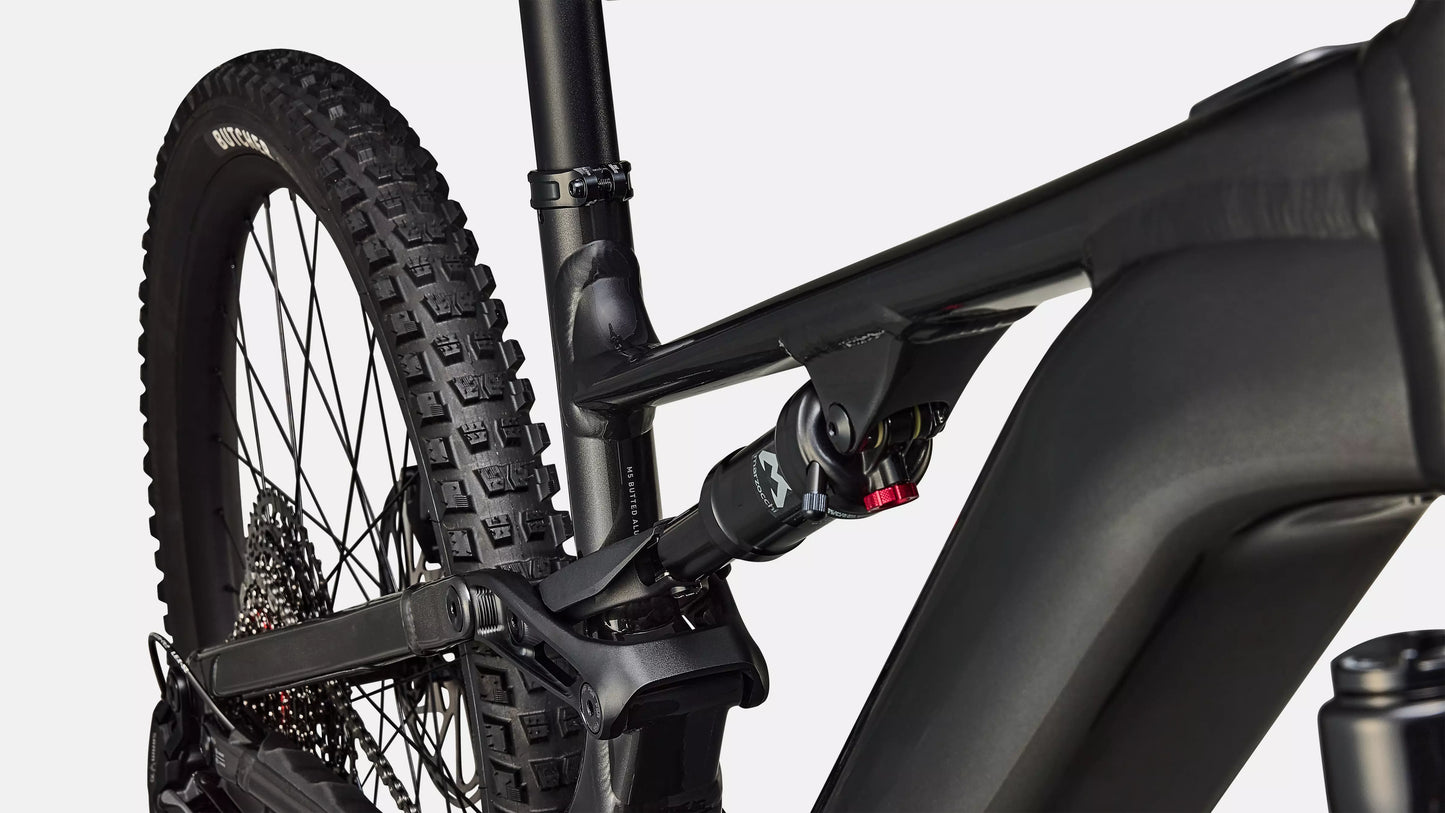

Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm |
| Vorderradbremse |
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
| Hinterradbremse |
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Schalthebel |
SRAM 70 trigger, 12-speed, single click |
| Schaltwerk |
SRAM Eagle 70 T-Type |
| Kassette |
XS-1270, 12-speed, 10-52t |
| Kette |
SRAM Eagle 70 T-Type Flattop Chain |
| Kurbelgarnitur |
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Kettenblätter |
SRAM 34t T-Type chainring, 104 BCD, steel |
| Felgen |
Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Vorderradnabe |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Hinterradnabe |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Speichen |
DT Swiss Elemental |
| Vorderreifen |
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
| Hinterreifen |
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Schläuche |
Standard, Presta Valve |
| Vorbau |
Alloy Trail Stem, 35mm bar bore |
| Lenker |

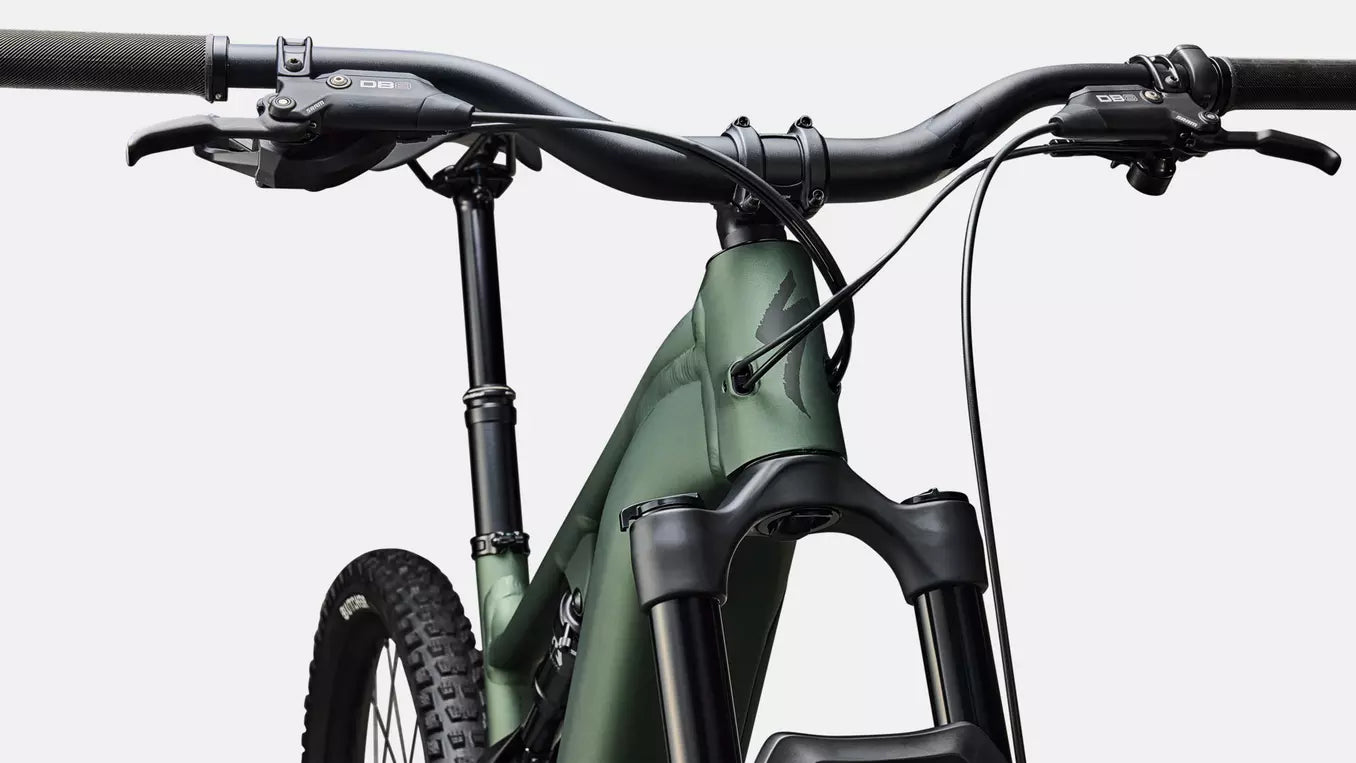

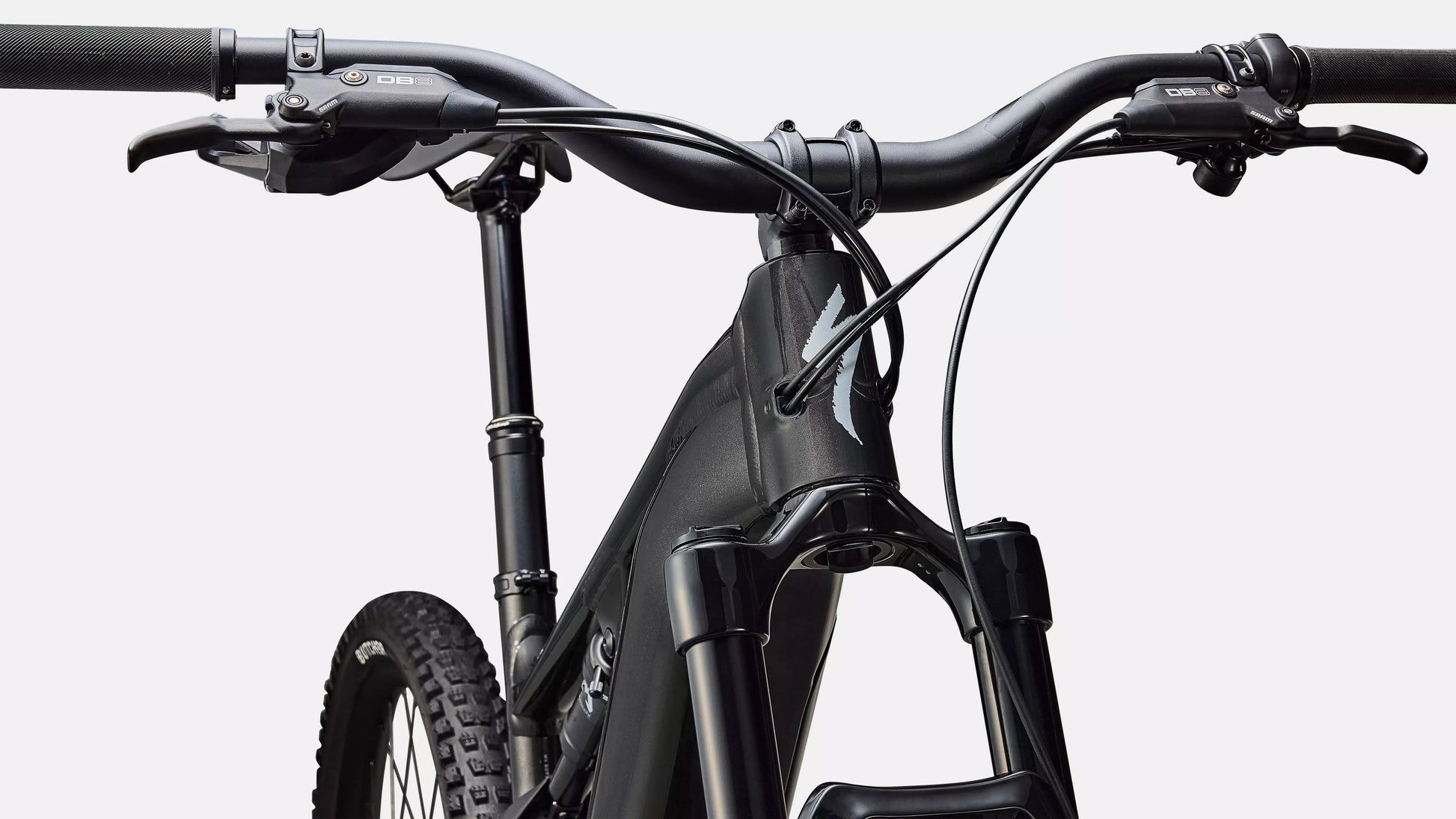

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6: 800mm width |
| Lenkergriffe |
Specialized Trail Grips |
| Sattel |
Body Geometry Bridge Saddle, steel rails |
| Sattelstütze |
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm, S4-S5: 170mm, S6: 200mm |
| SWAT™ |
SWAT Internal downtube storage |
| Konformitätszertifikat |
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries |
| Gewicht |
26.08 kg (57 lb, 7.8 oz) |
| Gemessene Rahmengröße |
S4 |
| Änderungen und Irrtümer vorbehalten. |
